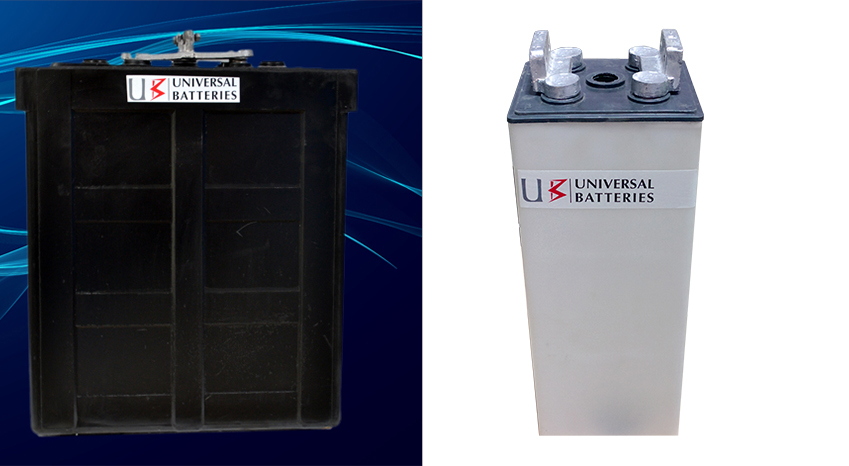

2 Volt cells


Universal battery cells belong to the most enduring lead acid batteries. They are suitable for stand-by operations as well as for capacitive loads. They perfectly meet requirements for bridging times between 1h and more than 10h. These cells are manufactured to the IS 1651:1993

PRODUCT FEATURES
  • Positive plates: Pressure die-casted with very low antimony lead alloy
  • Negative plates: Gravity casted with low antimony
  • Separators: PE material
  • Containers: Hard Rubber3
  • Terminals: Made of lead alloy with specially designed
  • Vent plugs: Plugs equipped with flame arrestors
  • Connectors: copper connectors

Technical Specification 2 Volts Cells C10 Capacity

Cell Type Normal Voltage Capacity in AH at 27 C in 10 Hrs Rate Dimension Cell Wt. (K.gs)(approx) Electrolyte Qty in Ltrs Per cell (approx) Charging Current (A) Initial No. Of Hrs.
Length (mm) Width (mm) Height (mm) With out Electrolyte (approx) With Electrolyte (approx) Initial Normal Equalizing
UPT 40 S 2 40 165±5 98 ±5 235 ±5 5.5 7 1.40 2 4 1.2 75
UPT 80 S 2 80 165±5 110 ±5 350 ±5 10 15 4.5 5 8 2.4 75
UPT 120 S 2 120 165±5 110 ±5 350 ±5 11.5 18 5.0 6 12 3.6 75
UPT 200 S 2 200 260±5 208 ±5 345 ±10 21 32 8.70 10 20 6.0 75
UPT 300 S 2 300 260±5 208 ±5 390 ±10 29 40 9.75 16 30 9.0 75
UPT 400 S 2 400 260±5 208 ±5 417 ±10 33 45 10.00 20 40 12.0 75
UPT 500 S 2 500 260±5 208 ±5 478 ±10 39 53 11.50 25 50 15.0 75
UPT 600 S 2 600 260±5 208 ±5 478 ±10 45 60 11.50 30 60 20.0 75
UPT 800 S 2 800 395±5 189 ±5 495 ±5 58 75 16.5 40 80 26.0 75
UPT1000 S 2 1000 395±5 189 ±5 495 ±5 75 95 19 50 100 33.0 75
