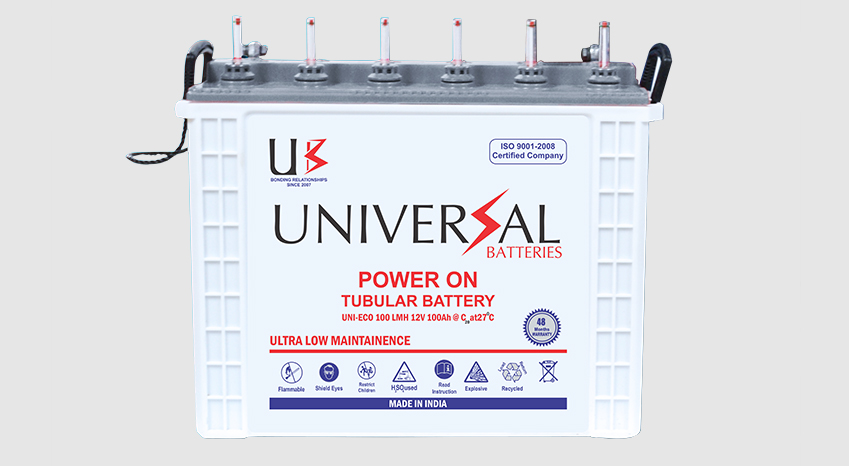

Tall Tubular Batteries

Universal tubular batteries are robust and proven tubular plate technology batteries, ideal for use in all standby, deep cycling and shallow cycling applications that require high levels of reliability. They are designed and manufactured according to relevant standards.

Tubular Batteries are assembled with tubular positive and pasted negative plates made of a special alloy. They are provided with transparent sealed float indicators and Micro Porous Aqua Trap vent plugs, which allow generated gases to escape and traps water particles, returning the major portion to the electrolyte. This reduces the frequency of topping up. With extra electrolyte head and proper voltage control, the frequency of topping up will be once a year. For the available series of Tubular Batteries please refer the types.

PRODUCT FEATURES

Batteries are designed to withstand frequent and long power cuts
Assembled in polypropylene containers with plate holding cradles
Extra thick tubular plates
Thick tubular plate spines are of low antimony alloy for super fine grain structure and minimized grid corrosion at high temperatures
Negative plates are of low antimony alloy
Micro porous ceramic vent cum sealed float plugs to reduce topping up frequency
Resistance to corrosion and high ambient temperature
Low self discharge
Deep cycle design

Technical Specification Of Tall Tubular Battery C10 Capacity

Cell Type	Normal Voltage	Capacity in AH at 27 C in 10 Hrs Rate	Dimension			Wt. (K.gs) (approx)		Electrolyte Qty in Ltrs Per cell (approx)	Charging Current(A)
Cell Type	Normal Voltage	Capacity in AH at 27 C in 10 Hrs Rate	Lengthn(mm)	Width (mm)	Height (mm)	With out Electrolyte (approx)	With Electrolyte(approx)	Electrolyte Qty in Ltrs Per cell (approx)	Initial	Normal	Equalizing
UBT 80 LMH	12	80	510±5	195±5	410±5	30	48	16	4	8	2.4
UBT 100 LMH	12	100	510±5	195±5	410 ±5	33	55	18	5	10	3
UBT 120 LMH	12	120	510±5	195±5	410±5	37	59	18	6	12	3.6
UBT 135 LMH	12	135	510±5	195±5	410±5	41	62	19	7	13.5	4
UBT 150 LMH	12	150	510±5	195±5	410±5	43	65	20	7.5	15	4.5
UBT 180 LMH	12	180	510±5	195±5	410±5	46	69	20	9	18	5.4
UBT 200 LMH	12	200	510±5	195±5	410±5	51	73	20	10	20	6

Technical Specification Of Tall Tubular Battery C20 Capacity

Cell Type	Normal Voltage	Capacity in AH at 27°C in 20 Hrs Rate	Dimension			Wt. (K.gs) (approx)		Electrolyte Qty in Ltrs Per cell (approx)	Charging Current (A)
Cell Type	Normal Voltage	Capacity in AH at 27°C in 20 Hrs Rate	Length (mm)	Width (mm)	Height (mm)	With out Electrolyte (approx)	With Electrolyte (approx)	Electrolyte Qty in Ltrs Per cell (approx)	Initial	Normal	Equalizing
UBT 100 LMH	12	100	510±5	195±5	410±5	31	49	16	4.5	8	2.6
UBT 120 LMH	12	120	510±5	195±5	410±5	34	56	18	5.5	10	3.2
UBT 135 LMH	12	135	510±5	195±5	410±5	38	60	18	6.5	12	3.8
UBT 150 LMH	12	150	510±5	195±5	410±5	43	63	19	7.5	13.5	4.2
UBT 180 LMH	12	180	510±5	195±5	410±5	45	66	20	8	15	4.8
UBT 200 LMH	12	200	510±5	195±5	410±5	47	70	20	9.5	18	5.6
UBT 220 LMH	12	220	510±5	195±5	410±5	52	74	20	10.5	20	6.2
